| Name | Project 1 | Project 2 |
| Feeding system |
Screw feeding machine capacity:110L |
Vacuum convey machine capacity:0.8－2.5L |
| Filling liquid system |
Flavor filling system 0.5-500ml/min |

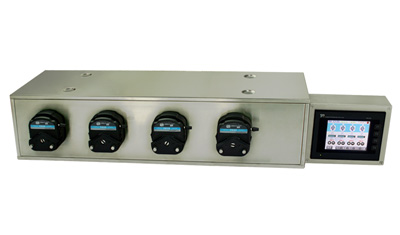

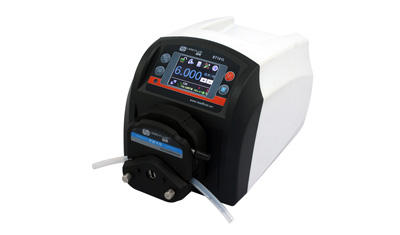

Peristaltic pump 0.006-570ml/min |
| Automatic sorting cup equipment |
Vibrate plate |
Rotary barrel |
| Loading cup structure |

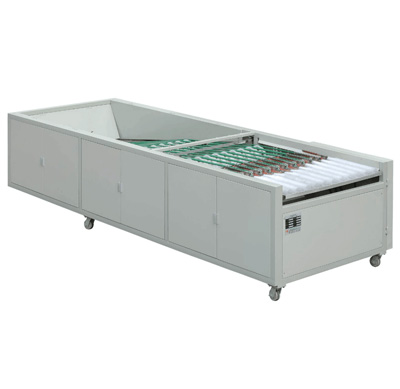

Big capacity horizontal loading device |
Vertical loading device |
| Filling hopper |

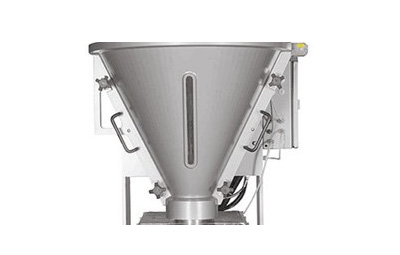

Visual hopper |

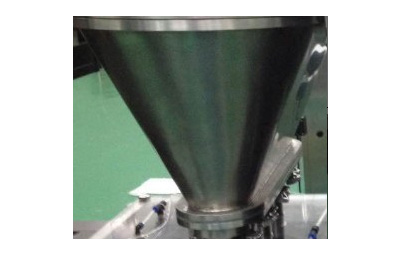

Close hopper |
| Option |
1.Different filling system 2.UV lamp 3.Anti-static device |
|
SZH-50 Automatic cartoning machine
Samples display
Model |
SZH-50 |
Speed |
20-40 Carton/Minute |
Carton size |
60－220(L)×30－120(W)×30－120(H)mm |
Control system |
PLC (OMRON ,SCHNEIDER,ROCKWELL) |
Display |
7 Inch Touchscreen |
Power supply |
AC220V/380V 50Hz/60Hz |
Dimension |
1700(L)×1400(W)×2100(H)mm |
Machine weight |
500kg |
Gross weight |
560kg |
Centralized control system and remote diagnosis system
Centralized control system
Remote diagnosis system
